Leica SP8 tauSTED

The techniques employed on this instrument are:



Experiment information

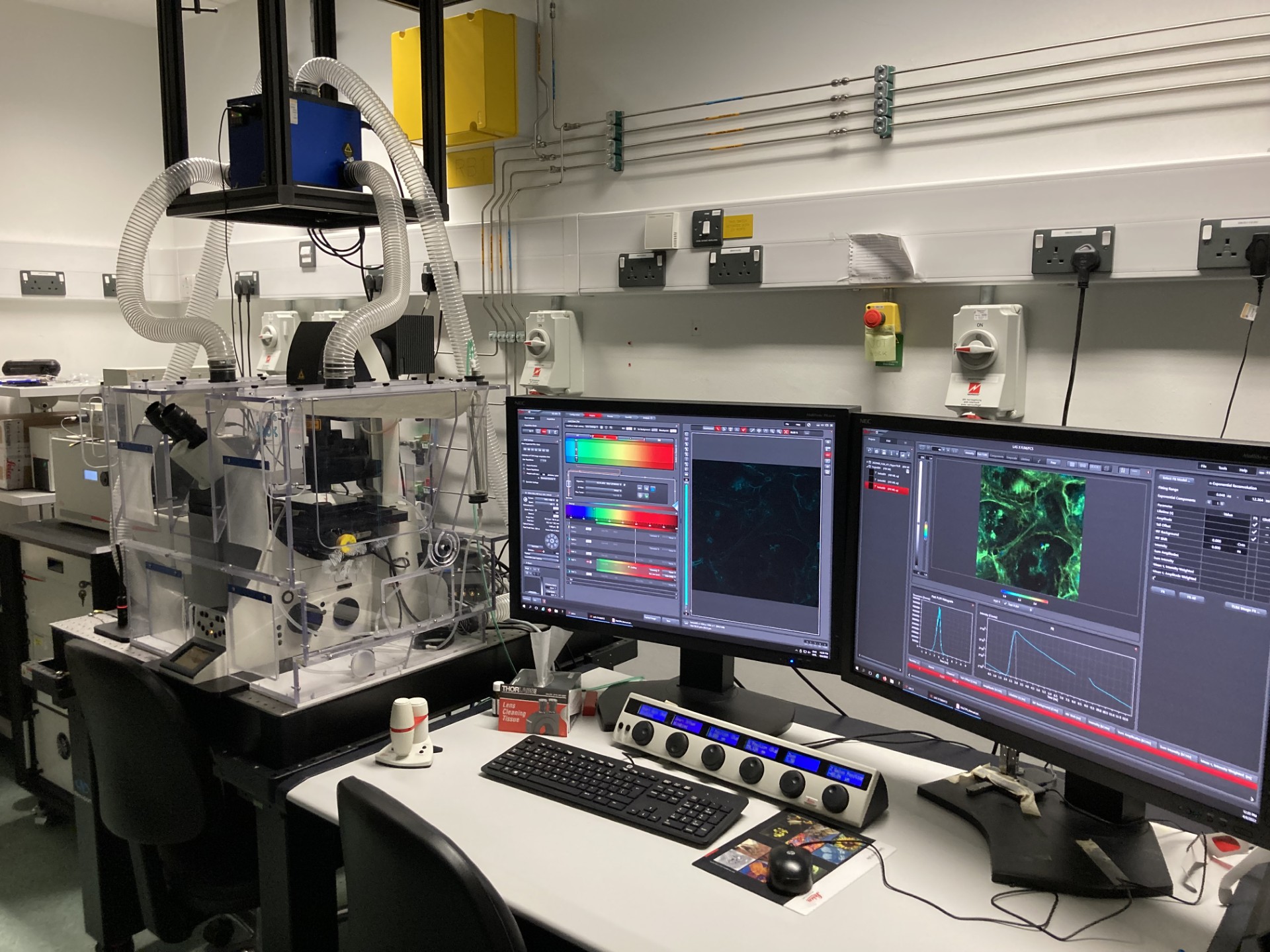

The Leica SP8 FALCON is an inverted confocal microscope equipped for both STED super-resolution imaging and fluorescence lifetime imaging (FLIM). Samples are illuminated from below, and a variety of stage adaptors accommodate standard microscope slides, dishes, and chamber slides. Optimal imaging performance is achieved using No. 1.5H coverslips or other optically suitable substrates with a thickness of 0.17–0.18 mm.

A stage-top incubator enables imaging under controlled temperature, CO₂, and humidity conditions. The pulsed White Light Laser (80 MHz) provides up to eight simultaneous excitation lines between 470 nm and 670 nm with 1 nm wavelength precision, facilitating accurate excitation of a wide range of fluorophores and multiplexed imaging. A pulse picker allows adjustment of the repetition rate. Three independent STED laser lines support multicolour STED imaging.

Detection is achieved using a combination of photomultiplier tubes (PMTs) and photon-counting HyD hybrid detectors, allowing flexible configurations for confocal, gated STED, TauSTED, FLIM, and other advanced imaging modes.

For further information or to discuss experimental requirements, please contact the STED specialist.

Technical specifications

Objectives lenses HC PL APO CS 10x/0.40 DRY, HC PL APO CS2 63x/1.4 OIL, HC PL APO 63x/1.20 W CORR CS2, HC PL APO 100x/1.40 OIL STED WHITE, HC PL APO 86x/1.20 W motorised correction STED WHITE
Lasers 405 Diode, supercontinuum WLL (470 to 670nm, 8 simultaneous laser lines, 80MHz, with pulse picker), STED: CW 592nm, CW 660nm, pulsed 775nm
Detectors Photon counting hybrid GaAsP-Avalanche Photodiode (HyD) x3

Photomultiplier tube (PMT) and one transmitted light detector x2

Environmental

control

Okolab stage top incubator temperature, CO2 mixer and humidity



Software

licences

LAS X (Live Data Mode, FRAP, FRET, FCS, HyVolution), Huygens Everywhere
